Technical college upgrades to ELCO’s advanced boiler technology.
ELCO Heating Solutions has supplied two TRIGON® XL 250 gas condensing boilers to Mediensis Technical College, Medias. The new boilers are providing highly efficient heating and hot water to the entire property.

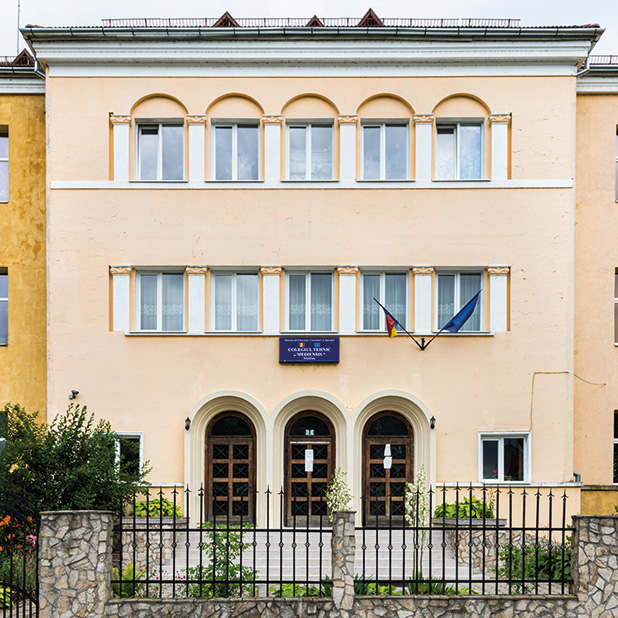

Mediensis Technical College in Medias, Romania.



The Challenge

The HVAC system at Mediensis Technical College was upgraded with the latest floor standing boiler technology from ELCO Heating Solutions. The TRIGON® XL 250 represents a major upgrade, with the new boilers offering a range of technical firsts.



Comment

The access to the plant room within the Mediansis Technical College was limited, which created a challenge when replacing the boilers. As a result, it was imperative to specify a compact unit that would be easy to manouevre on site. Measuring only 468cm wide and supplied with castor wheels, ensured the TRIGON® XL 250 could be taken through narrow doors and corridors for a hassle free installation.


TRIGON XL Product image

Featured Products



The TRIGON® XL represents a significant step forward in heating technology.



With extremely flexible configurations, clever design and a range of models available, the boiler is perfect for a variety of commercial applications. Plus, extensive cascade arrangements of up to 8 boilers with a combined output of 4,560kW are possible.



 Unique heat exchanger with HEX³ geometry for class leading NOx and

CO emissions

 Extremely high efficiency

 Robust stainless steel heat exchanger

 Low water content boiler

 Compact dimensions

 Can be easily dismantled and reassembled onsite

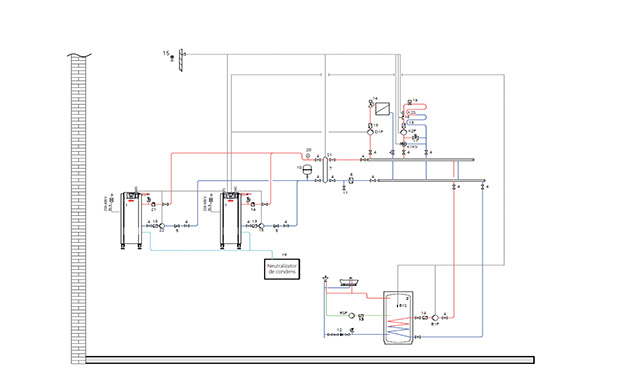

System schematic of TRIGON XL 250

System Schematic



 2 x TRIGON® XL 250 (installed in cascade with equalisation cylinder and four heating circuits)

System capability

Intelligent control

Compact design with small footprint

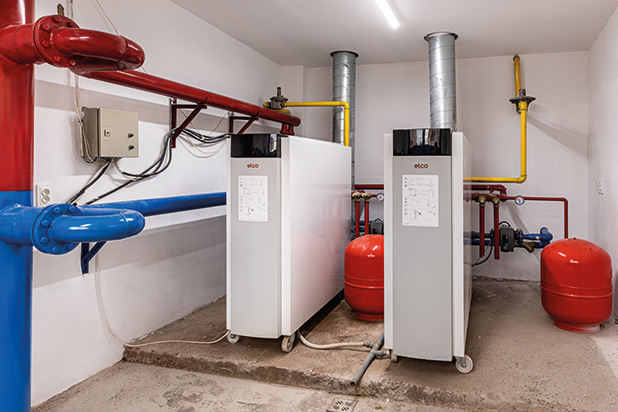

The ELCO solution: 2x TRIGON XL 250

The ELCO solution



The installation of the two ELCO units was part of the complete refurbishment of the heating and hot water system at Mediensis Technical College.





"The final result is outstanding! The new boilers have made a tremendous impact, helping to significantly reduce operating costs and greatly improve all-round reliability."



- Florin Medeșan, Unigroup owner (installing company)



Benefits

TRIGON® XL 250



35 litres
For single boiler heat exchanger
27 mg/kWh
NOx level (annual emission EN15502)
110.4%
Annual efficiency (NNG 40/30ºC)
