AEROTOP® SPK
Air-to-water heat pump
Power 2.3 kW to 10 kW
Minimal noise
At 46 dB(A) in the installation room, the AEROTOP® S.2 is as quiet as a refrigerator.
AEROTOP® S.2
Air-to-water heat pump
Power 5 kW to 17 kW
Power 5 kW to 17 kW
AEROTOP® S.2 air-to-water heat pumps not only offer a high level of heating and hot water comfort in residential buildings, but also maximise efficiency. They are just as convincing as systems in new buildings as they are in restoration or renovation buildings. And because an AEROTOP® S.2 is installed inside the house, it is not visible to others. AEROTOP® S.2 provides contemporary answers to rising heating costs and higher environmental requirements.
Key features at a glance
Less energy costs
Depending on whether you have AEROTOP® S.2 installed in a new build or as part of a modernisation project, you will make significant savings compared to a conventional heat generator.
Low emissions
Set another example in terms of environmental protection: If you operate your AEROTOP® S.2 with green electricity, it is 100% CO2-neutral.
Cooling function
The AEROTOP® S.2 05M-IR to S09M-IR can also actively cool in conjunction with underfloor heating.
High temperature
Thanks to the 65° C flow temperature, the AEROTOP® S.2 can also be used in renovation projects.
Technical Information
| AEROTOP S.2 | 05.2 | 07.2 | 09.2 | 12.2 | 15.2 | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Energy efficiency class* Room heating | W35 | A+++ / A+++ | A+++ / A+++ | A+++ / A+++ | A+++ / A+++ | A++ / A++ | ||||||||||||||||
| W55 | A++ / A++ | A++ / A++ | A++ / A++ | A++ / A++ | A++ / A++ | |||||||||||||||||
| Sound power level according to EN 12102 | dB(A) | 44 | 44 | 45 | 49 | 49 | ||||||||||||||||
| Dimensions H x W x D | mm | 1835 x 1000 x 860 | 1835 x 1000 x 860 | 1835 x 1000 x 860 | 1835 x 1000 x 860 | 1835 x 1000 x 860 | ||||||||||||||||
| Weight | kg | 277 | 277 | 277 | 299 | 299 | ||||||||||||||||
| Heating | ||||||||||||||||||||||
| Nominal power (max.) according to EN 14511/ EN 14825 [kW] | A2/W35 | 4.9 (7.9) | 5.7 (9.9) | 6.5 (12.5) | 8.0 (18.6) | 9.6 (21.3) | ||||||||||||||||
| A7/W35 | 4.9 (8.2) | 5.7 (10.7) | 6.8 (13.1) | 8.0 (19.1) | 9.6 (22.0) | |||||||||||||||||
| A-7/W35 | 5.1 (6.3) | 6.9 (8.3) | 8.8 (10.2) | 11.8 (14.7) | 14.0 (16.9) | |||||||||||||||||
| Coefficient of performance according to EN 14511 [COP] | A2/W35 | 4.3 | 4.2 | 4.3 | 4 | 4.2 | ||||||||||||||||
| A7/W35 | 5.1 | 5 | 5 | 4.9 | 4.9 | |||||||||||||||||
| A-7/W35 | 3.5 | 3.3 | 3.2 | 3.2 | 3.1 | |||||||||||||||||
| Cooling | ||||||||||||||||||||||
| Nominal power [kW] | A35 / W18 | 4.1 | 6.2 | 3.4 | ||||||||||||||||||
| Energy Efficiency Ratio [EER] | A35 / W18 | 4.2 | 4 | 3.6 | ||||||||||||||||||
* Energy efficiency class: Room heating: Product / system in accordance with Regulation EU 811/2013
Product label range: A+++ to D
System label range: A+++ to G
Solutions
First Class Service
People say we offer the best customer service in the industry: in fact, we are there for our customers 365 days a year, 24 hours a day. With more than 800 service engineers in Europe.
MORE ABOUT SERVICE AT ELCO
Your heating always at hand - with REMOCON NET
Wouldn't it be nice if you could set the ideal room temperature at the touch of a button before you get home? With the ELCO REMOCON-NET app for your smartphone, you can control your heating system anytime, anywhere. Adjust the settings for optimum energy consumption and save money.
MORE ABOUT REMOCON NET

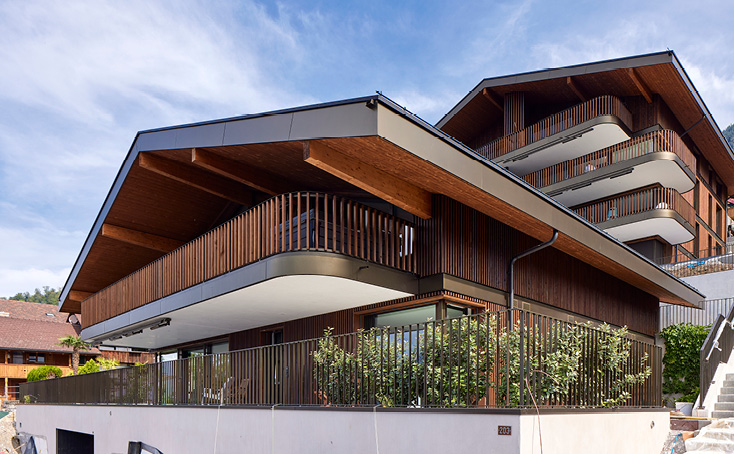

Our references - your security
Our customers love their heating solutions from ELCO. That's why they are happy to give us an insight into their heating centres. That makes us happy and, of course, very proud!
TO OUR REFERENCESAccessories
.svg){kind=icon}
ELCO air duct system and weather protection grille
A plastic air duct system is available for particularly easy installation. This is technically and visually matched to the AEROTOP® S.2 and impresses with its simple handling and short installation times. Also available: a sound and flow-optimised plastic weather protection grille that blends in perfectly with the architecture of the building.
Control and display unit QAA75
with integrated room temperature sensor for one or two heating circuits. The device with its attractive design and integrated display lighting makes it easy for the user to operate. The operating mode and temperature selection can be set from the living room and all important heating information can be read off. This ensures optimum comfort with maximum energy savings.
Hydraulic switches
enable optimum hydraulic interaction between the generator and heating circuit. This means that the system can be customised to local requirements - regardless of whether it is a new build or renovation.
Plate heat exchanger
are suitable for a wide range of applications, especially for system separation in older heating systems with underfloor heating, for example.
The ELCO VISTRON® storage programme
offers a first-class solution for the storage or heating of hot water or domestic water for everyone. To utilise your system particularly efficiently, you need intelligent storage technology that matches your hot water preparation and heating system. A correctly dimensioned VISTRON® cylinder helps you to realise an optimum energy concept and is a useful addition to your heating system.
